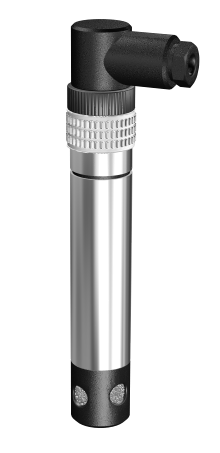

Relative Humidity Transmitter BRHV100

BRHV100 probe is designed to replace the old BRHS model for HVAC applications.

Description

BRHV100 probe is designed to replace the old BRHS model for HVAC applications. Using thin-film sensor, whose capacitance varies proportionally to medium relative humidity, and a thin-film temperature sensor, the probe measures relative humidity and temperature of air and nonaggressive gases at atmospheric pressure, and transforms it into standard current or voltage output signal. The BRHV100 transducer allows external control of the input/output conversion (RH or temperature) through a special programming input. Depending on the output wiring, 2 variants – 2-wire and 3-wire – are available, as both may have serial interface. The probe has a 4-pin M12 circular connector with IP65 mounted and can be optionally equipped with a stainless steel sintered filter for sensor protection. Thanks to its robust stainless steel case, flexible communication potential, and attractive price, the BRHV100 transmitter can be widely used in HVAC and food industry control systems.

Title Type Size
Data sheet application/pdf 56 KB
